Home Products Metal Inlay Flange Rubber Gasket
COD not available
Gaskets

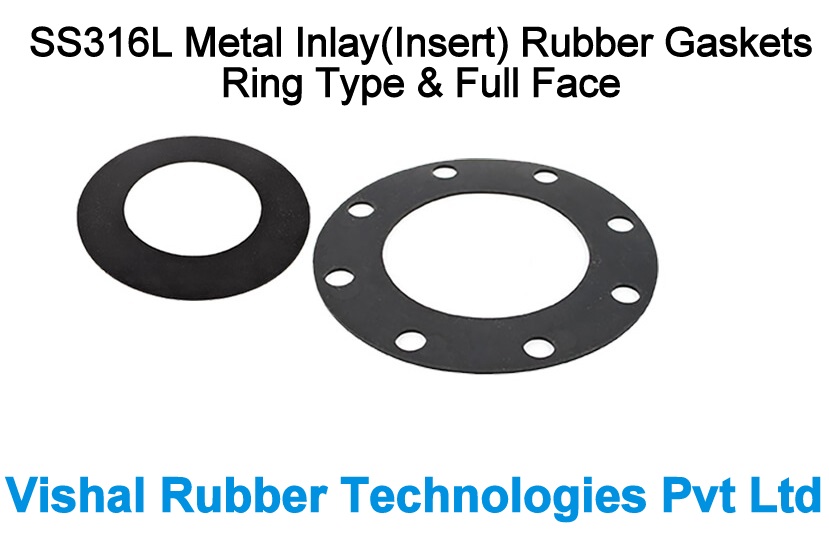

Metal Inlay Flange Rubber Gasket

Share with
Share this on :

Description

Product details

Metal Inlay Flange Rubber Gaskets Engineered for Reliability. Certified for Global Standards. Our metal inlay flange rubber gaskets combine the resilience of high-grade elastomers with the structural integrity of precision-engineered steel inserts—delivering unmatched sealing performance across demanding industrial environments. Key Features: • Vulcanized Metal Core: Centrally embedded steel (SS304, SS316 etc) ensures blow-out safety and dimensional stability under extreme pressure and temperature. • Elastomer Versatility: Available in EPDM, NBR, HNBR, FKM, and more—each tailored to resist steam, chemicals, hydrocarbons, and aggressive media. • Low Surface Pressure Sealing: Achieves tight seals even at reduced bolt torque, minimizing flange stress and installation complexity. • Wide Temperature Range: Operational reliability up to 200°C, ideal for pipelines, HVAC, chemical processing, and transit systems. • EPDM variants available with EN45545 HL3 fire safety rating for rail applications. Applications: • Rail & Transit (EN45545 HL3-compliant) • Oil & Gas, Petrochemical • Power Plants & Industrial Equipment • Drinking Water & Food-Grade Systems (material-specific)

  • Filter tags

Other Products

Related Products

Rail / Metro-Grade EPDM Rubber—EN45545 R23 HL3 Certified Safety. Compliance. Performance. Delivered. We proudly introduce our EN45545-2 R23 HL3-rated EPDM rubber solutions, engineered for the most demanding rail applications. Designed to meet the highest fire safety standards in Europe, our materials offer exceptional flame resistance, low smoke emission, and minimal toxicity—ensuring passenger protection and regulatory peace of mind. Why Choose Our EPDM? Certified to EN45545 HL3 for R23 sealing and gasketing applications Halogen-free, low-smoke, and non-toxic—ideal for enclosed rail environments Excellent weathering, ozone, and UV resistance for long-term durability Wide operating range: -40°C to +120°C Available in custom extrusions, Moulded Rubber Parts Applications Railcar/Metro HVAC and cable entry gaskets Anti-vibration mounts Interior and exterior sealing systems Global Compliance & Export Ready Our EPDM compounds are backed by third-party fire testing. Whether you're supplying OEMs or retrofitting fleets, our materials are ready for global deployment.
View Details
Fire Retardant EN45545 R23 HL3 Rated Rubber Products
We manufacture and Supply UL 94 EPDM & Silicone Rubber Parts Like FR Grommets, FR Gaskets, FR Orings, FR Sleeves, FR Washers and other moulded or extruded Rubber products. From Lowest (Least Flame - Retardant) to Highest (Most Flame - Retardant). Standards are given below for details about its details of testing, UL 94-5VA UL 94-5VB UL 94 V-0 UL 94 V-1 UL 94 V-2 UL 94 H-B HB: slow burning on a horizontal specimen; burning rate < 76 mm/min for thickness < 3 mm or burning stops before 100 mm V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed. V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole. 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole.
View Details
Fire Retardant FR EPDM & Silicone Rubber Products
We manufacture and Supply UL 94 EPDM & Silicone Rubber Parts Like FR Strips, FR Grommets, FR Gaskets, FR Orings, FR Sleeves, FR Washers and other moulded or extruded Rubber products. From Lowest (Least Flame - Retardant) to Highest (Most Flame - Retardant). Standards are given below for details about its details of testing, UL 94-5VA UL 94-5VB UL 94 V-0 UL 94 V-1 UL 94 V-2 UL 94 H-B HB: slow burning on a horizontal specimen; burning rate < 76 mm/min for thickness < 3 mm or burning stops before 100 mm V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed. V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole. 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole.
View Details
Fire Retardant (FR) UL94 Silicone & EPDM Rubber Strips/Gaskets
