Products

We offer a comprehensive range of extruded Rubber Profiles and tubing for all applications. These are available in many compounds including Nitrile / Buna-N (NBR), Fluorocarbon (Viton®, Fluorocarbon (FKM), Silicone (VMQ), Fluorosilicone (FVMQ), Natural Rubber (NR), Ethylene Propylene (EPDM), Hydrogenated Nitrile Rubber (HNBR), Styrene Butadiene Rubber (SBR), Chloroprene (Neoprene®), etc. Whether you require just a few meters or much larger quantities, we will be delighted to quote for your requirement. Extruded rubber products will differ from moulded rubber products based on the process where extruded parts are forced through a die of the required cross section under pressure of an extruder. Often extruded products are unvulcanized prior to being extruded, leaving the rubber in a soft and pliable state post extrusion. If this is indeed the case, the finished extruded products will normally need to be vulcanized before they are rendered usable. The extrusion process begins with the unvulcanized rubber compound being fed into the extruder. Next, the flutes of the revolving screw will begin to carry the rubber forward into the die, with an increase in pressure and temperature occurring as the material gets closer to the die itself. Once it reaches the die, the built up pressure forces the material through the openings, where it will consequently swell in various degrees based on the material compound and hardness. Because of this tendency towards swelling, many extruded parts require plus or minus tolerances on their cross sections. During the vulcanization, the extruded rubber will well or shrink in both its cross section and its length depending on the type of rubber compound used. After vulcanization, a length of rubber extrusion will tend to be reduced in dimension more in the center of the length than in the ends.

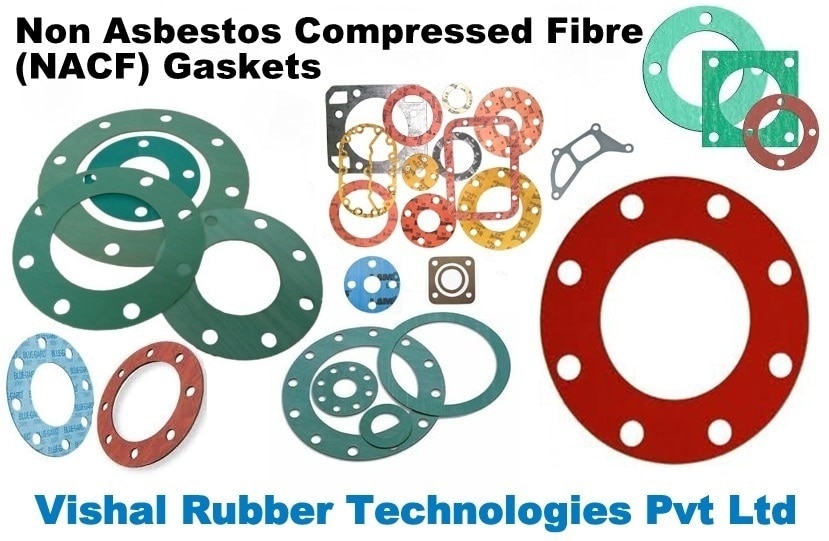

NACF Gaskets Non-asbestos fiber mixed with heat/chemical resisting rubber binder, then rolled and vulcanized. Used as pipe flange and gasket for equipment in various industries.

Anti-Vibration (AV) rubber mounts or Isolators are crucial components in most types of heavy machinery and equipment which help dampen noise levels and vibration frequency while safeguarding fragile components from external vibrations. Types of Mounts : Hexagonal Mounts Sandwich / Isolation Mounts Cylindrical Mounts Flanged Mounts Angle Mounts Machinery Foot Mounts Shock Mounts Concave Buffer Mounts Anti-Vibration Pads Circular Mounts Applications : Lifts Engine Mounts Vibratory Screens Conveyors Hoppers Free-standing refrigeration isolators Heavy machinery isolators e.g. lathes, drilling machines etc Coach vehicle body isolators

We provide excellent varieties of Filter Rubber Gasket to our esteemed clients. Products offered by us are highly appreciated among the customers for their better efficiency, optimum strength and excellent functioning in extreme conditions. These filter gaskets are used in Irrigation Filters used in Drip Irrigation.

A Sleeve is a basic type of coupling. This consists of a pipe whose bore is finished to the required tolerance based on the shaft size. Rubber Sleeves and buffers can be manufactured in a range of shapes, sizes and material to suit the application. Rubber Sleeves can be used for variety of applications such as covering joints, insulation in different mechanical parts and electrical applications, covering hoppers, etc. Sleeves are also manufactured from over 15 polymers including: Nitrile / Buna-N (NBR), Fluorocarbon (Viton®, Fluorocarbon (FKM), Silicone (VMQ), Fluorosilicone (FVMQ), Polyurethane (AU/EU), Natural Rubber (NR), Ethylene Propylene (EPDM), Hydrogenated Nitrile Rubber (HNBR), Styrene Butadiene Rubber (SBR), Chloroprene (Neoprene®), etc.

PTFE is principally used as a gasket material because of it's capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of PTFE gasket materials-Virgin PTFE, Filled PTFE and expanded PTFE. Virgin PTFE is by far the least expensive of the three varieties, and is used in most general applications. Filled PTFE is a gasket material with a virgin PTFE base to which a substance is added during manufacture to improve the sealing characteristics of PTFE. This “filler“ usually is glass or graphite particles although ceramics has sometimes been used. The resulting gasket material is strong, yet highly compressible with very good, though not universal, chemical resistance. Expanded PTFE is virgin PTFE to which a stress resistance has been added by means of molecular rearrangement during manufacture. This process ensures that the molecular chains from which the PTFE is constructed, do not arrange themselves into set patterns. This means that expanded PTFE possesses no structural weakness (grain) and expands and contracts equally in all directions. Because no additives are required, expanded PTFE also possesses the unique chemical resistance of virgin PTFE.

Exclusive PTFE Diaphragm material is a time proven product which is made using best of the technology and material used is offering longest cycle life in the industry which continues to outperform all competitive materials. These Diaphragms usually used in Pumps which proves to be durable and versatile. Containing high performance PTFE Sheet on the wetted side which in effect they last significantly longer than other conventional diaphragms. These Diaphragms profice dramatic improvement in service life and are considerably stronger, with greater flex life. Excellent chemical resistance makes PTFE Pump Diaphragms extremly versatile. They are suitable for use with most chemicals and in elevated temperatures and pressures, and are ideally suited for general service pumps that are used for a vatiety of pumping tasks. Benefits: 1. Longer Lasting diaphragms, which is less replacement times. 2. Versatile Diaphragms, which works with most chemicals. 3. Lower Cost, which means maintenance and operating cost reduction Key Features: 1. Contains high performance PTFE Sheet. 2. Excellent Rib Construction in Diaphragm Designs. 3. Chemically resistant and high temperature resistant. 4. Greater flex life.

Rubber Bellows and boots are an essential part of many different industrial systems. They are flexible seals used in a range of applications for sealing dust and other environmental elements in applications with a calculated range of motion. Vishal Rubber Technologies Pvt. Ltd. fabricates rubber bellows and boots using compression moulding utilizing the most recent rubber compounds available. Each of these methods has certain attributes that would be relevant based on the criteria of the application. Our custom rubber bellows and boots are designed to protect against : Dust Water Oil Grease Acids Bleaches Spatter and pressure Moisture Chemicals UV Other environmental elements Rubber Bellows/Boots/Expansion Bellows are also manufactured from over 15 polymers including: Nitrile / Buna-N (NBR), Fluorocarbon (Viton®, Fluorocarbon (FKM), Silicone (VMQ), Fluorosilicone (FVMQ), Polyurethane (AU/EU), Natural Rubber (NR), Ethylene Propylene (EPDM), Hydrogenated Nitrile Rubber (HNBR), Styrene Butadiene Rubber (SBR), Chloroprene (Neoprene®), etc.

We are offering ptfe machined products. Vishal Rubber Technologies Pvt Ltd is leading Manufacturer, Exporter & Supplier of PTFE machined components in various sizes and materials used in various applications of Sealing, non-abrasive applications, chemicals plants, high temperature applications etc.

PTFE Sheets are typically of two types, namely Skewed PTFE Sheets and Moulded PTFE Sheets. Widely used in applications where high abrasion resistance is required, chemical resistance, high heat resistance, Oil & Acid resitance, etc. PTFE is principally used as a gasket material because of it's capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of PTFE gasket materials. Virgin PTFE , filled PTFE and expanded PTFE . Virgin PTFE is by far the least expensive of the three varieties, and is used in most general applications. Filled PTFE is a gasket material with a virgin PTFE base to which a substance is added during manufacture to improve the sealing characteristics of PTFE . This “filler“ usually is glass or graphite particles although ceramics has sometimes been used. The resulting gasket material is strong, yet highly compressible with very good, though not universal, chemical resistance. Expanded PTFE is virgin PTFE to which a stress resistance has been added by means of molecular rearrangement during manufacture. This process ensures that the molecular chains from which the PTFE is constructed, do not arrange themselves into set patterns. This means that expanded PTFE possesses no structural weakness (grain) and expands and contracts equally in all directions. Because no additives are required, expanded PTFE also possesses the unique chemical resistance of virgin PTFE .

It is mostly used in Food packaging machinery, Conveyor belting industry, Electronic component manufacturing companies, PCB Panel manufacturing industry, etc. Rubber Rollers can be made using more than 15 polymers including : Nitrile / Buna-N (NBR), Fluorocarbon (Viton®, Fluorocarbon (FKM), Silicone (VMQ), Fluorosilicone (FVMQ), Polyurethane (AU/EU), Natural Rubber (NR), Ethylene Propylene (EPDM), Hydrogenated Nitrile Rubber (HNBR), Styrene Butadiene Rubber (SBR), Chloroprene (Neoprene®), etc
