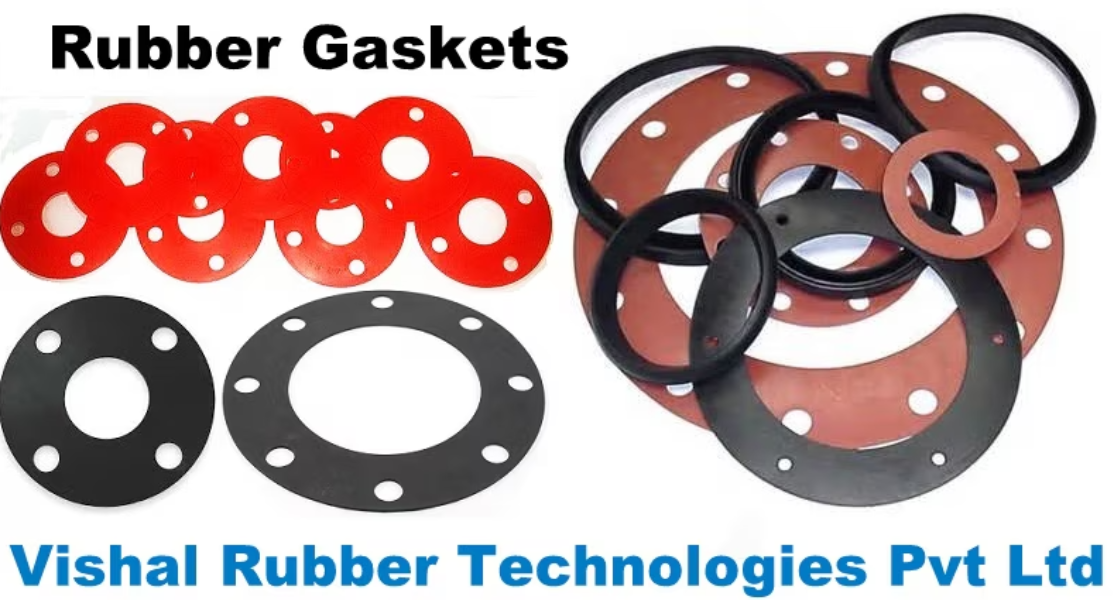

Rubber flange gaskets are essential sealing components used between two mating flange surfaces. When properly selected and installed, they help prevent leakage of water, air, chemicals, oils and other process media from pipelines and industrial equipment.
For engineering teams and maintenance departments in Pune, gasket performance can directly affect operational reliability. A gasket that is incompatible with the application may soften, crack, swell or lose compression over time. Understanding the operating conditions before selecting a material is therefore more important than choosing a gasket based only on size.
How Rubber Flange Gaskets Create a Seal
Even accurately machined flange surfaces contain small irregularities. A rubber gasket compresses between the two flanges and fills these microscopic gaps. This creates a barrier that helps contain the process medium inside the system.
The effectiveness of the seal depends on several connected factors:
- Rubber compound and hardness
- Gasket thickness
- Flange design and surface condition
- Bolt load and tightening sequence
- Operating temperature
- System pressure
- Chemical compatibility
- Frequency of vibration and pressure cycling
Rubber flange gaskets are commonly manufactured in full-face and ring-type configurations. Full-face gaskets cover the complete flange face and include bolt holes. Ring gaskets sit inside the bolt circle and seal only the raised or contact area.
Common Rubber Materials Used for Flange Gaskets
Different elastomers provide different performance characteristics. The correct material must be chosen according to the process environment.
EPDM Rubber
EPDM is widely used for water, steam within suitable limits, weather-exposed systems and several mild chemical applications. It offers good resistance to ozone, ageing and outdoor conditions. It is generally unsuitable for petroleum oils and hydrocarbon fuels.
Nitrile Rubber
Nitrile rubber is frequently selected for applications involving petroleum-based oils, lubricants and certain fuels. Its suitability depends on the operating temperature, fluid composition and compound formulation.
Neoprene Rubber
Neoprene provides a useful balance of weather resistance, mechanical strength and moderate resistance to oils. It is used in general industrial sealing applications where several environmental factors are present.
Natural Rubber
Natural rubber offers elasticity and abrasion resistance. It may be used in water, slurry and selected low-pressure applications, provided that the medium and temperature are compatible.
Viton Rubber
Viton-based gaskets are considered for demanding environments involving elevated temperatures, fuels, oils and aggressive chemicals. The exact grade should be confirmed because chemical resistance can vary between formulations.
Industrial Applications Across Pune
Rubber flange gaskets are used across Pune’s manufacturing and engineering clusters, including Bhosari, Chakan, Pimpri-Chinchwad, Talegaon and Ranjangaon. Typical applications include:
- Water treatment pipelines
- Chemical processing equipment
- Pump and valve assemblies
- HVAC installations
- Food-processing utilities
- Pharmaceutical production systems
- Automotive manufacturing lines
- General engineering machinery
The gasket requirements for a water pipeline are different from those of a chemical transfer line. Similarly, an outdoor installation may require stronger resistance to weathering and ozone than a gasket fitted inside controlled equipment.
Important Details Required Before Manufacturing
Clear technical information helps a gasket manufacturer recommend a suitable product. Buyers should provide:
- Flange standard and pressure class
- Inner and outer diameter
- Gasket thickness
- Bolt-hole size and quantity
- Operating pressure and temperature
- Name and concentration of the process medium
- Required rubber grade and hardness
- Applicable test certificate or compliance requirement
- Estimated order quantity
A drawing or approved sample can reduce dimensional errors, especially for custom flange patterns.
Vishal Rubber Technologies manufactures rubber flange gaskets for varied industrial requirements in Pune and other locations across Maharashtra. Material selection, dimensional control and application review remain important at every stage because a gasket is only dependable when its design matches the actual system.
Routine inspection is equally valuable after installation. Signs such as edge extrusion, cracking, swelling, permanent flattening or recurring leakage may indicate incorrect material selection, uneven bolt loading or unsuitable operating conditions. Addressing these issues early can help protect connected equipment and reduce unplanned maintenance.
